Small Size. Big Business Performance.
Boost business performance with 12th Gen Intel® Core™ processors and the latest features to support productivity, collaboration, and edge compute.

Small Outside. Powerful Inside.
Intel® NUC 12 Pro Mini PCs and Kits raise the bar for performance and connectivity in a 4x4 device for the edge, business, or home. 12th Gen Intel® Core™ processors deliver revved-up performance with up to 64 GB dual-channel memory and ample SSD capacity-plus lightning-fast wired and wireless connectivity.

Intel® NUC Pro Form Factors
Available as mini PCs or customizable kits, every device is qualified for 24x7 operation and comes with three-year availability and a three-year warrant.

Intel® NUC 12 Pro Mini PCs
Small PCs and compact workstations, loaded with Windows and ready to use right out of the box. Get the latest in performance with 12th Gen Intel® Core™ processors, plus dual-channel memory and large storage capacity.

Intel® NUC 12 Pro Kits
Kits include a range of 12th Gen Intel® Core™ processors, chassis, and board. They are easy to customize with the right operating system, memory, and storage to meet different customer needs.

Intel® NUC 12 Pro Boards
Choose from Intel® NUC board, compute, and chassis elements to create unique integrated or embedded compute solutions.

Surprising Size. Supercharged Performance.
Level up your business with the latest technologies.

Mighty Performance
With 12th Gen Intel® Core™ processors, Intel® NUC 12 Pro Mini PCs, Kits, and Boards deliver the latest in powerful performance for edge computing, collaboration, home offices, and more.

Intel vPro® Platform
Created for IT professionals, Intel vPro® Enterprise sets the standard for business: multilayer hardware-based security, efficient remote manageability, business-class performance, and PC fleet stability. Powerful, proven performance for today and tomorrow.

Device Management Is Built in
Stay on top of all of your devices. Oversite tools like Application Monitor, Player Failover and Advanced Features make Intel NUC devices easy for admins.

All Day, Every Day
Intel® NUC devices are engineered, built, and backed by Intel for 24/7 commercial use1, perfect for your "always on" needs like digital signage, security systems and more.

Powerful Tools for Digital Signage
Intel® NUC Pro Software Suite(NPSS) ensures that digital signage applications stay running and enables player redundancy, agnostic of CMS package.

The Power of Small
With a 4" x 4" footprint, pint-sized Intel® NUC 12 Pro Mini PCs and Kits are available in two chassis, including tall kits with a 2.5" drive bay and an internal expansion bay.

CPU Supported
CPU Type	12th Gen Intel® Core™ i5-1240P
Memory Supported
Memory installed	No Memory
Memory slot	Dual DDR4-3200 SODIMMs, 1.2V, up to 64GB
Memory Type Supported	DDR4 3200
Max Memory Supported	64GB
Dual Channel Memory Supported	Yes
Storage
M.2	1x M.2 22x80 socket supporting PCIe x4 Gen 4 NVMe from 128GB to 8TB or SATA SSD from 128GB to 2TB | 1x M.2 22x42 socket (non-dual-LAN only) supporting
	PCIe x1 Gen3 NVMe from 128GB to 512GB or SATA SSD from 128GB to 512GB
Graphics
Onboard Video	Intel® Iris® Xe Graphics
Audio
Channel	7.1 multichannel digital audio via HDMI or Thunderbolt
Communications
LAN	1x Intel 2.5Gb LAN
Wireless LAN	Intel Wi-Fi 6E AX211, 802.11ax

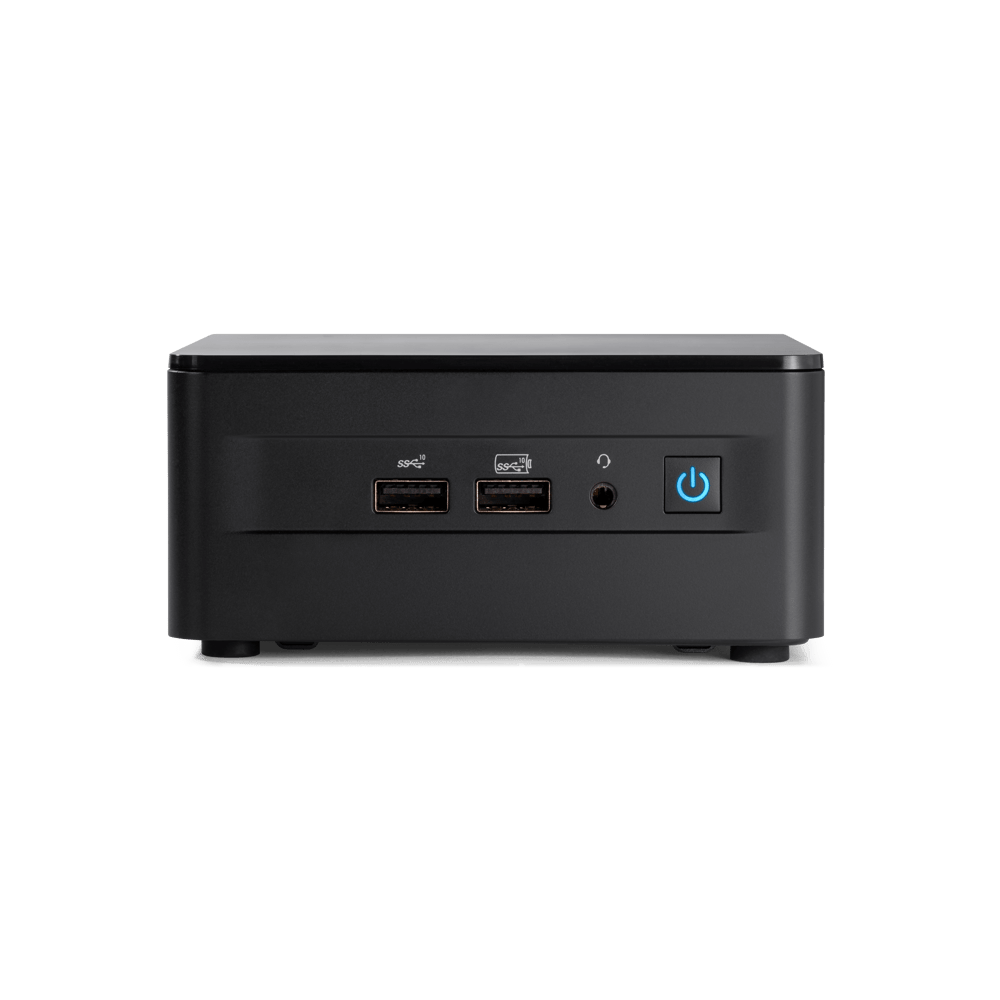

Front Panel Ports
Front USB	2x Front USB 3.2 Gen2 type-A
Front Audio Ports	3.5mm stereo headset jack

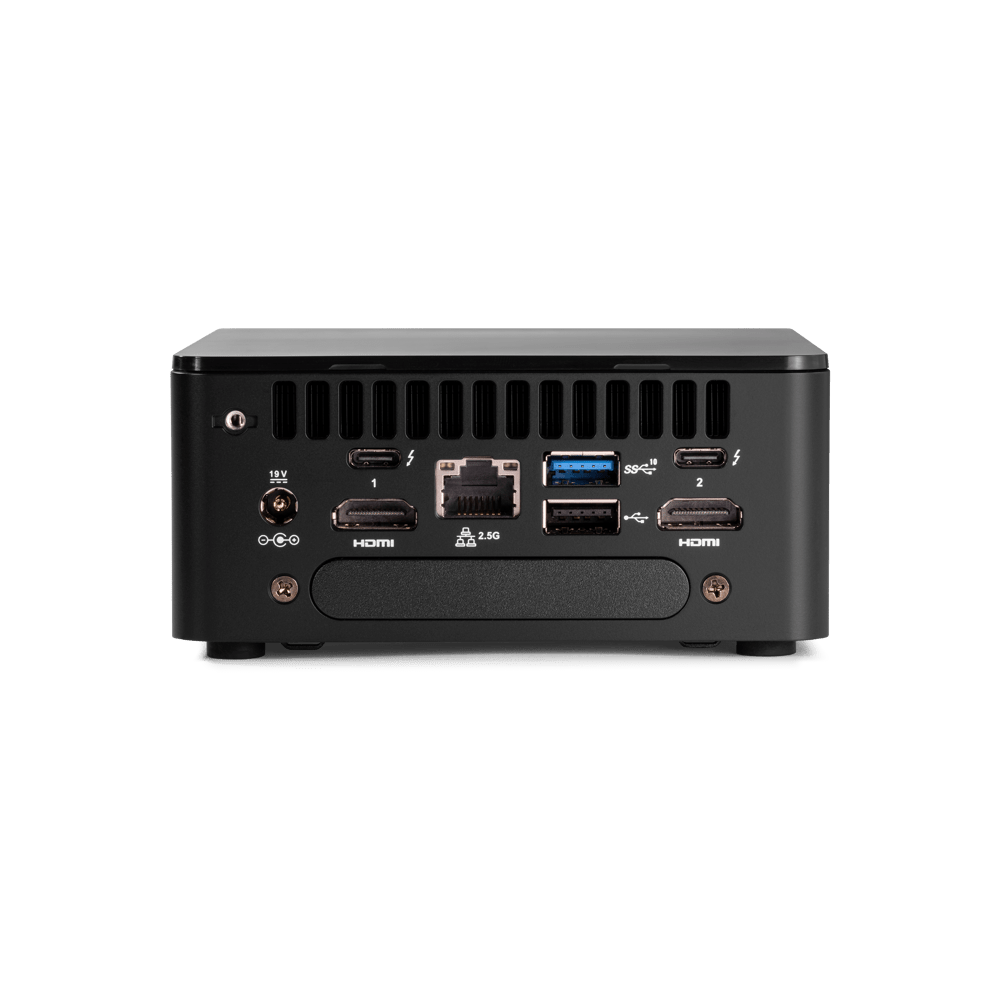

Back Panel Ports
HDMI	2x HDMI 2.0b
Thunderbolt 3	2x Thunderbolt 4 (Alt-DP)
Rear USB	1 x Rear USB 3.2 Gen2 type-A
	1 x Rear USB 2.0 type-A
RJ45	1
Power Supply
Input	12-20VDC variable DC input
Power Supply	120W 19V PSU supplied
Features
Features	Primary storage up to 8TB Gen4
	NVMe or 2TB SATA SSD
	Secondary storage up to 512GB Gen 3
	3 PCIe or 512GB SATA (non-dual-LAN only)
	Tertiary 2.5” drive up to 8TB SATA
	Memory up to 64GB
	Replaceable lid for I/O expansion
	Rear panel expansion (dual-LAN)
	Kensington lock support
	VESA mount included
